pocketflow/cookbook/pocketflow-tracing

PocketFlow Tracing with Langfuse

This cookbook provides comprehensive observability for PocketFlow workflows using Langfuse as the tracing backend. With minimal code changes (just adding a decorator), you can automatically trace all node executions, inputs, outputs, and errors in your PocketFlow workflows.

🎯 Features

• Automatic Tracing: Trace entire flows with a single decorator
• Node-Level Observability: Automatically trace prep, exec, and post phases of each node
• Input/Output Tracking: Capture all data flowing through your workflow
• Error Tracking: Automatically capture and trace exceptions
• Async Support: Full support for AsyncFlow and AsyncNode
• Minimal Code Changes: Just add @trace_flow() to your flow classes
• Langfuse Integration: Leverage Langfuse's powerful observability platform

🚀 Quick Start

1. Install Dependencies

pip install -r requirements.txt

2. Environment Setup

Copy the example environment file and configure your Langfuse credentials:

cp .env.example .env

Then edit the .env file with your actual Langfuse configuration:

LANGFUSE_SECRET_KEY=your-langfuse-secret-key
LANGFUSE_PUBLIC_KEY=your-langfuse-public-key
LANGFUSE_HOST=your-langfuse-host-url
POCKETFLOW_TRACING_DEBUG=true

Note: Replace the placeholder values with your actual Langfuse credentials and host URL.

3. Basic Usage

from pocketflow import Node, Flow
from tracing import trace_flow

class MyNode(Node):
    def prep(self, shared):
        return shared["input"]

    def exec(self, data):
        return f"Processed: {data}"

    def post(self, shared, prep_res, exec_res):
        shared["output"] = exec_res
        return "default"

@trace_flow()  # 🎉 That's it! Your flow is now traced
class MyFlow(Flow):
    def __init__(self):
        super().__init__(start=MyNode())

# Run your flow - tracing happens automatically
flow = MyFlow()
shared = {"input": "Hello World"}
flow.run(shared)

📊 What Gets Traced

When you apply the @trace_flow() decorator, the system automatically traces:

Flow Level

• Flow Start/End: Overall execution time and status
• Input Data: Initial shared state when flow starts
• Output Data: Final shared state when flow completes
• Errors: Any exceptions that occur during flow execution

Node Level

For each node in your flow, the system traces:

• prep() Phase:

  • Input: shared data
  • Output: prep_res returned by prep method
  • Execution time and any errors

• exec() Phase:

  • Input: prep_res from prep phase
  • Output: exec_res returned by exec method
  • Execution time and any errors
  • Retry attempts (if configured)

• post() Phase:

  • Input: shared, prep_res, exec_res
  • Output: Action string returned
  • Execution time and any errors

🔧 Configuration Options

Basic Configuration

from tracing import trace_flow, TracingConfig

# Use environment variables (default)
@trace_flow()
class MyFlow(Flow):
    pass

# Custom flow name
@trace_flow(flow_name="CustomFlowName")
class MyFlow(Flow):
    pass

# Custom session and user IDs
@trace_flow(session_id="session-123", user_id="user-456")
class MyFlow(Flow):
    pass

Advanced Configuration

from tracing import TracingConfig

# Create custom configuration
config = TracingConfig(
    langfuse_secret_key="your-secret-key",
    langfuse_public_key="your-public-key",
    langfuse_host="https://your-langfuse-instance.com",
    debug=True,
    trace_inputs=True,
    trace_outputs=True,
    trace_errors=True
)

@trace_flow(config=config)
class MyFlow(Flow):
    pass

📁 Examples

Basic Synchronous Flow

See examples/basic_example.py for a complete example of tracing a simple synchronous flow.

cd examples
python basic_example.py

Asynchronous Flow

See examples/async_example.py for tracing AsyncFlow and AsyncNode.

cd examples
python async_example.py

🔍 Viewing Traces

After running your traced flows, visit your Langfuse dashboard to view the traces:

Dashboard URL: Use the URL you configured in LANGFUSE_HOST environment variable

In the dashboard you'll see:

• Traces: One trace per flow execution
• Spans: Individual node phases (prep, exec, post)
• Input/Output Data: All data flowing through your workflow
• Performance Metrics: Execution times for each phase
• Error Details: Stack traces and error messages

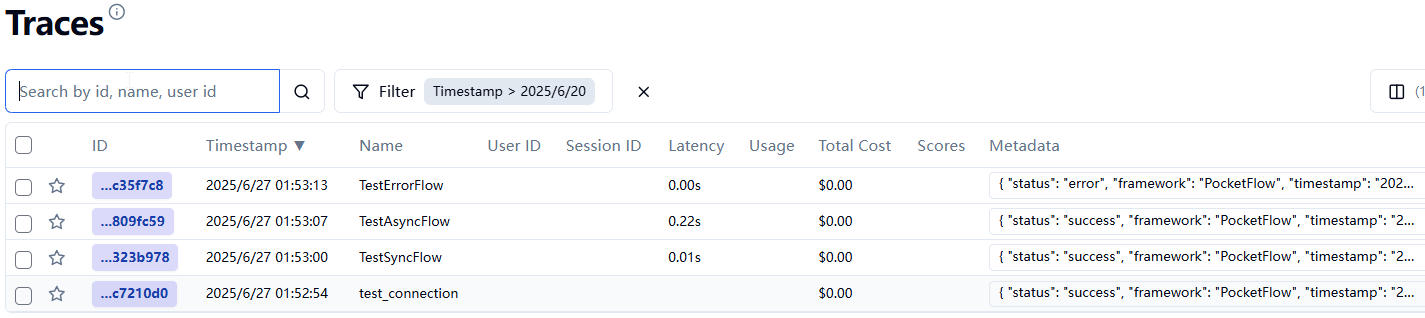

The tracings in examples.

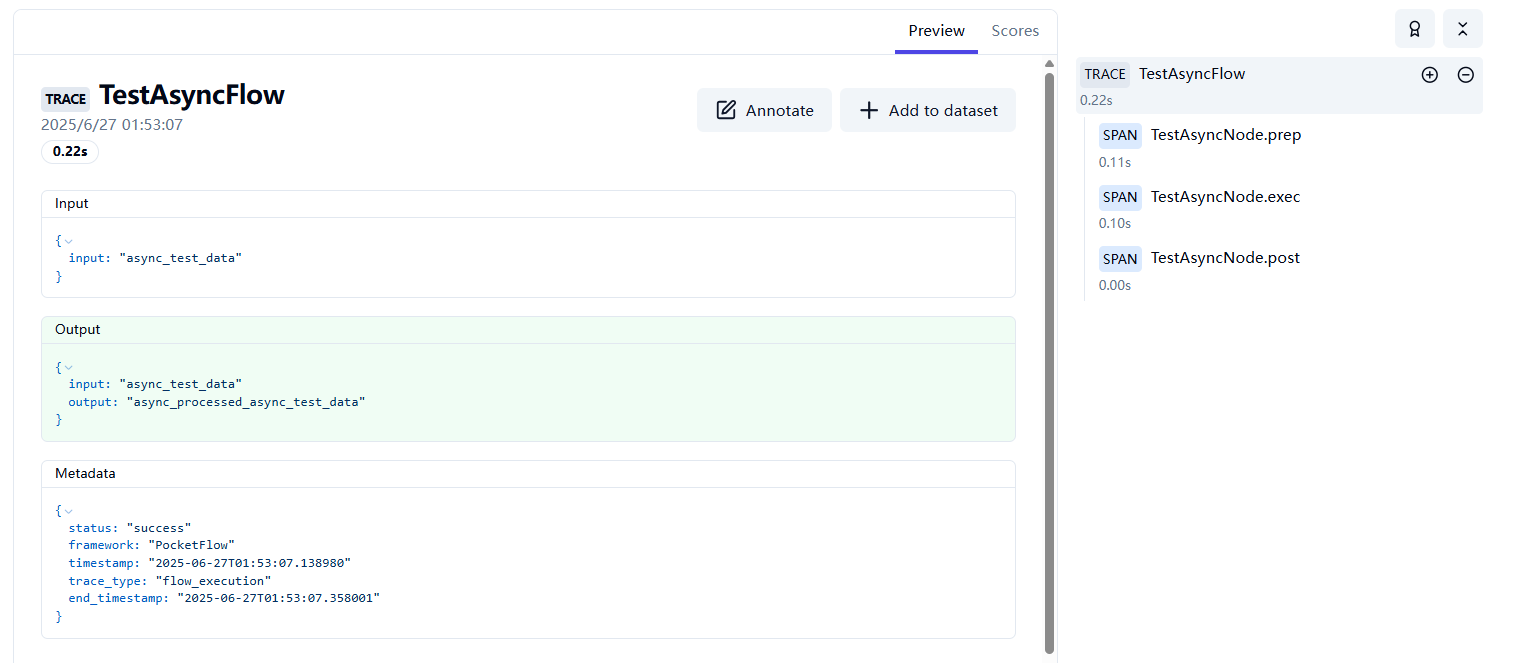

Detailed tracing for a node.

🛠️ Advanced Usage

Custom Tracer Configuration

from tracing import TracingConfig, LangfuseTracer

# Create custom configuration
config = TracingConfig.from_env()
config.debug = True

# Use tracer directly (for advanced use cases)
tracer = LangfuseTracer(config)

Environment Variables

You can customize tracing behavior with these environment variables:

# Required Langfuse configuration
LANGFUSE_SECRET_KEY=your-secret-key
LANGFUSE_PUBLIC_KEY=your-public-key
LANGFUSE_HOST=your-langfuse-host

# Optional tracing configuration
POCKETFLOW_TRACING_DEBUG=true
POCKETFLOW_TRACE_INPUTS=true
POCKETFLOW_TRACE_OUTPUTS=true
POCKETFLOW_TRACE_PREP=true
POCKETFLOW_TRACE_EXEC=true
POCKETFLOW_TRACE_POST=true
POCKETFLOW_TRACE_ERRORS=true

# Optional session/user tracking
POCKETFLOW_SESSION_ID=your-session-id
POCKETFLOW_USER_ID=your-user-id

🐛 Troubleshooting

Common Issues

1. "langfuse package not installed"

   pip install langfuse


2. "Langfuse client initialization failed"

   • Check your .env file configuration
   • Verify Langfuse server is running at the specified host
   • Check network connectivity

3. "No traces appearing in dashboard"

   • Ensure POCKETFLOW_TRACING_DEBUG=true to see debug output
   • Check that your flow is actually being executed
   • Verify Langfuse credentials are correct

Debug Mode

Enable debug mode to see detailed tracing information:

POCKETFLOW_TRACING_DEBUG=true

This will print detailed information about:

• Langfuse client initialization
• Trace and span creation
• Data serialization
• Error messages

📚 API Reference

@trace_flow()

Decorator to add Langfuse tracing to PocketFlow flows.

Parameters:

• config (TracingConfig, optional): Custom configuration. If None, loads from environment.
• flow_name (str, optional): Custom name for the flow. If None, uses class name.
• session_id (str, optional): Session ID for grouping related traces.
• user_id (str, optional): User ID for the trace.

TracingConfig

Configuration class for tracing settings.

Methods:

• TracingConfig.from_env(): Create config from environment variables
• validate(): Check if configuration is valid
• to_langfuse_kwargs(): Convert to Langfuse client kwargs

LangfuseTracer

Core tracer class for Langfuse integration.

Methods:

• start_trace(): Start a new trace
• end_trace(): End the current trace
• start_node_span(): Start a span for node execution
• end_node_span(): End a node execution span
• flush(): Flush pending traces to Langfuse

🤝 Contributing

This cookbook is designed to be a starting point for PocketFlow observability. Feel free to extend and customize it for your specific needs!

📄 License

This cookbook follows the same license as PocketFlow.
